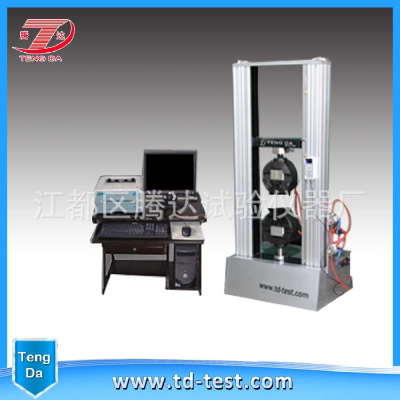

Electronic universal testing machine is a kind of material testing equipment which has the leading technology in China. Products applied to metal, nonmetal, composite materials and products of tensile, compression, bending, shearing, tearing, peeling and other physical properties test. The use of windows98/me/2000/xp operating system platform, graphics and image of the software interface, flexible data processing, modular VB language programming method, the security of the limit protection and other functions. Has the automatic generation algorithm, automatic test report editing function; convenient debugging and system development ability, can calculate the maximum stress, yield stress, yield stress, the average proportion of non stripping force parameters; measuring instruments with high precision, high automation and intelligence in one. Its novel structure, advanced technology, stable performance, simple and flexible operation, convenient maintenance, can be used for scientific research departments, colleges and industrial and mining enterprises to carry out mechanical properties of various materials and production quality inspection.

Technical parameter:

1, the maximum range: 50000N

2, accuracy: the value of the value of 0.5% or less

3, speed range: 5mm/min--500mm/min (according to user requirements set)

The range of the allowable error of the speed range is within 1% of the indicated value.

4, effective stretching distance: 900mm

5, displacement measurement accuracy of the value of: 1%

6, deformation measurement accuracy of the value of: 1%

7, acquisition rate: 50 times /S

8, print function: print the maximum force, deformation, yield point.

9, this machine adopts frequency conversion drive Taiwan motor synchronous belt drive home sensor

10, the power supply voltage: 50Hz AC220V

11, size: 650mm * 580mm * 1450mm

12, weight: 130kg
