Product overview:

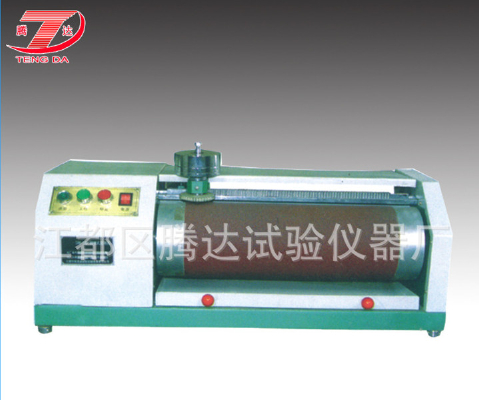

Roller type wear machine called DIN wear machine, with GB9867, ISO4649 and DIN53516 requirements. For the determination of abrasion resistance of rubber tires, rubber shoes, tape, rubber products with quality identification.

The machine is mainly composed of a power system, rotating roller, sample rotation device, automatic shutdown system and for the rotation of the gear and the small sample rack transmission device and a base. The main principle is: in a certain load, at a certain level of gauze, gauze on the surface of columnar samples in a certain range of grinding cutting, through quality wear of the specimen is measured by the density of the sample, calculate the volume wear. In order to test the comparability, finally must use standard rubber, the test results were expressed as relative volume to check the gauze based grinding quantity is expressed as relative to the base or wear wear a standard of glue.

Technical parameter:

1 sample pressure (N):2.5 510

2 wear stroke: 40or20m

3 roller speed: 40 1r/min

4 roller diameter: 150 0.2mm

5 roller length: 460mm

6 sample diameter: 16 0.2mm

7 outside diameter: 700 * 340 * 300mm
