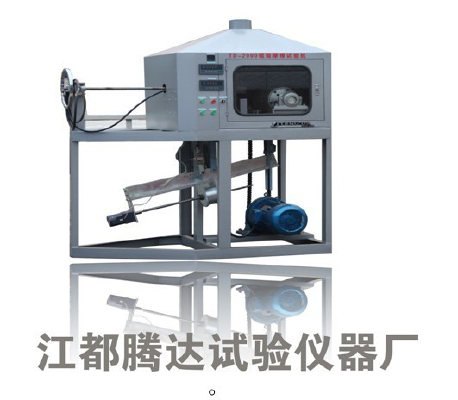

TD--2000 Drum friction testing machine

First, according to the standard: according to the requirements of HG / T and manufacturing 2648-1994 conveyor belt roller friction testing machine; meet the test method for steel cord conveyor MT450-1995 mine and GB/T 7986-1997 test method for friction roller conveyor belt. The main test conveyor belt at the rated speed and the load of the drum friction test, to observe whether there is a flame burning and non flame burning phenomenon

Two, instrument parameters:

1, drum size: of 210 0.5mm

2, roller material: high quality steel

3, roller speed: 200 5r/min

4, tension weight: 343N one (can be automatically adjusted)

5, air flow: (handheld wind speed needle)

6, motor power: 7.5KW

7, micro blower power: 220V, 25W

8, the diameter of 40 (diameter: porous), ventilation hole diameter of phi 6mm 21 spacing 13mm

9, porous tube and drum distance: 600mm

10, air flow: adjustable

11, time control: the digital display can be adjusted, set the time parameter value to achieve automatic shutdown.

12, temperature display: PID display

13, temperature sensor: PT100, diameter 2mm

14, size: About 2140 x 1800 x 1371mm

15, weight: about 600KG

16, power: 50HZ 380V
