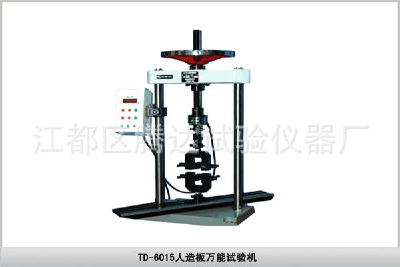

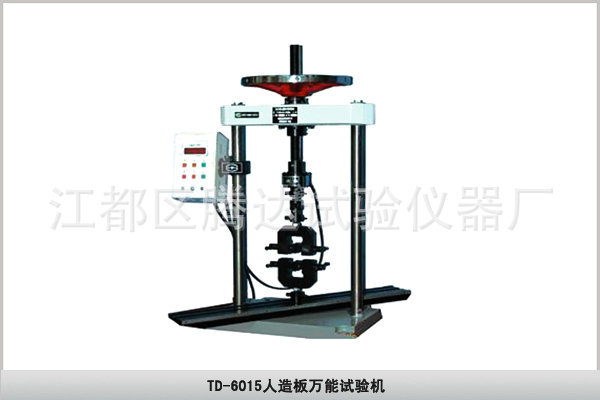

Product overview:

Variable frequency control tensile testing machine adopts Taiwan frequency control system Taiwan motor. Luxury test software interface can realize the fixed speed, positioning and other control modes plus multi - order control mode can meet different test requirements. Overload emergency stop device up and down stroke limiting device, automatic breakpoint stop. The entire seven yuan load file: * 1, * 2, * 5, * 10, * 20, * 50, * 100 adopts high precision 24 bits A/D sampling frequency of 200Hz automatic shift, absolute 1/200000 resolution. Covers GB, ASTM, DIN, JIS, BS... Standard Specification for testing, etc.. Random switching in a variety of languages: Simplified Chinese, traditional Chinese, english. WIN-XP test software computer screen display. RS232 transmission. Provide users to set all the test data, the first time the input data is used permanently. The length, the power unit and the display number are used in dynamic interchange mode. Graphical curve scale automatic optimization (Scale Auto), can make the graphics with the best scale display. And can be tested in real-time dynamic graphics switching. With the load displacement, load time, displacement time, stress strain load -2 point extension graph. Test results can be EXCEL, TEXT, HTML and other formats of data format output. The end of the test can be automatically archived, manual filing, testing is completed automatically calculate the maximum strength, yield strength, tensile strength, compressive strength, tensile strength of 100%, 300% tensile strength and elastic modulus, elongation, stripping interval maximum and minimum value, average value and so on.

Technical index:

1 load cells: 10 - 5000N

2, power resolution: 1/10000

3, strength accuracy: less than 0.5%

3.1 power amplification: 7 automatic switching

4, displacement analysis: 0.001mm

5, displacement accuracy: 0.5%

6, large deformation accuracy: 1mm

7, speed range: 1-800mm/min (special requirements set)

8, the maximum stroke: 800 (excluding the holder)

9, the power supply voltage: 50Hz 220V

10, size: 650 x 580 x 1150mm

11, quality: 250kg
